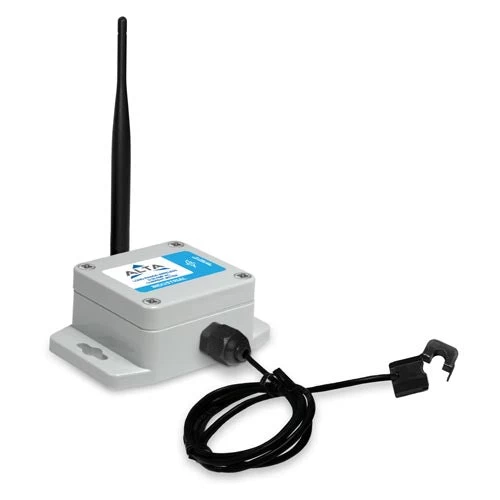

ALTA Industrial Wireless AC Current Meter, 20 Amp, 900MHZ

Monnit wireless AC Current Meters measure the RMS current of an alternating current (AC) system using a current transformer (CT) that wraps around the “hot” wire of a two wire (hot, common, ground(optional)) power system. The sensor reports Minimum RMS current, maximum RMS current, average RMS current, and amp hours to the iMonnit system. The iMonnit system is capable of generating watt hour or kilowatt hour readings as well.

Monnit MNS2-9-IN-CM-020 Features

1,200+ foot range12+ year battery life80+ wireless sensorsBank-level AES securityUp in 15 easy setupGlobal ready (900, 920, 868 & 433 MHz)

AC Current Meter Specifications

Absolute Max CT Current: 50 Amps RMS (Arms)Maximum Accurate CT Current: 20 A rmsFrequency Measurement Range: 50 – 100 HzOffset Limits: -1.27 to + 1.27 Arms (default set to +.1 Arms)Measurement Resolution: ~.01 ArmsLead Wire Length: 3 feetAccuracy: +/- (2% +.07 A rms) **Calibrated Accuracy with Appropriate Offset: +/- (1% + .035 A rms)

Variation Specifications

Security: Encrypt-RF® (256-bit key exchange and AES-128 CTR)UL Rating: UL Listed to UL508-4x specifications (File E194432)Weight: 6.3 oz. (179 g) – with CT

ALTA Industrial Specifications

Supply Voltage: 2.0 – 3.8 VDCBattery Type: Replaceable 3.6V, 1800mAH (single AA sized)Battery Life: At 1 hour heartbeat setting, battery will last up to 10 years.**Max Operating Temperature: -40° to 85°C (-40° to 185°F)Optimal Battery Operating Temperature: +10°C to +50°C (+50°F to +122°F)Solar Power Option: 3.0 VDC Solar Panel 600 mAH Rechargeable Battery (>2000 Charge Cycles – 80% of Initial Capacity)Charging Temperature Range: 0° to 45°C (32° to 113°F) Max Temperature Range: -20° to 60°C (-4° to 140°F)Enclosure Material: IP65, NEMA 4X, CE rated, sealed, weatherproof enclosureUL Rating: UL Listed to UL508-4x specifications (File E194432)Dimension: 3.7 in x 2.32 in x 1.38 in

ALTA 900 MHz Specifications

Operating Frequency: 900 MHz Operating FrequencyCertifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
