ALTA Wireless Voltage Detection – 200 VDC – AA Battery Powered, 900MHZ

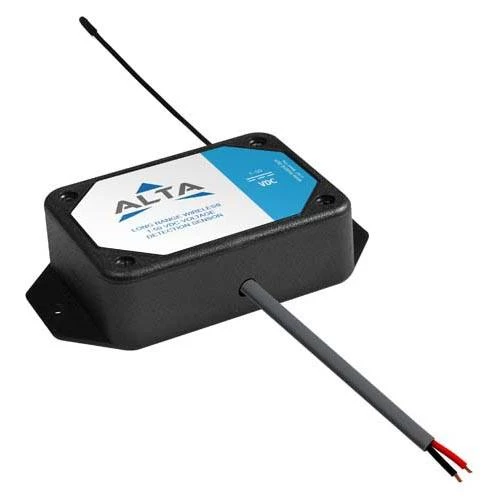

The Monnit Voltage Detector – 200 VDC detects the presence or absence of electricity. It is intended for use on battery or other DC sources, up to 200 Volts. Not intended for use with AC Voltages. It is perfect for batteries, adapters, solar equipment, vehicles or machinery, and any other electrical appliance monitoring. The sensor triggers on voltage presence to voltage Absence and vice versa. The data is displayed as “Voltage Detected” or “No Voltage”.

Monnit MNS2-9-W2-VD-200 Features

1,200+ foot range12+ year battery life80+ wireless sensorsBank-level AES securityUp in 15 easy setupGlobal ready (900, 920, 868 & 433 MHz)

Voltage Detection Sensor Specifications

Maximum Rated Input Voltage: 200.0 VoltsMinimum Rated Input Voltage: -200.0 VoltsVoltage Detection Threshold: Present above ~2 VDC, Absent below ~1.8 VDC (Indeterminant from 1.8 to 2 VDC)Trigger: Transmits data upon state changeOpen Circuit Reading: Voltage absentResponse Time: ~2 SecondsLead Wire Length: 2 Wires, 1 ft (12 in), Red (+), Black (-), 22 AWG

Variation Specifications

Weight: 3.9 oz. (111 g.)

ALTA AA Specifications

Battery Type: 2 Replaceable AA 1.5 V BatteriesDimension: 4.375 in x 2.470 in x 1.12 inSupply Voltage: 2.0 – 3.8 V (2 x AA 1.5V Batteries or Optional Power Supply)Battery Life: At 1 hour heartbeat setting, AA batteries will last up to 10 years.**Max Operating Temperature Using AA Alkaline: -18°C to 55°C (0°F to 130°F)Max Operating Temperature Using AA Lithium: -40°C to 60°C (-40°F to 140°F)Optimal Battery Operating Temperature: +10°C to +50°C (+50°F to +122°F)Enclosure Material: ABS

ALTA 900 MHz Specifications

Operating Frequency: 900 MHz Operating FrequencyCertifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
