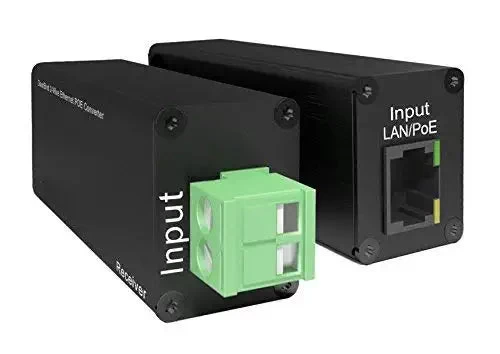

Doorbird Ethernet Converter – Ethernet And PoE Over 2 Wires

The DoorBird 2-Wire Ethernet PoE Converter is probably the world‘s smallest and most powerful converter. It allows you to transfer network data (Ethernet) and power (PoE) with a simple two-wire cable over long distances.



For example; existing buildings with a simple two-wire bell wire can be equipped with network technology without having to retrofit any network cables.



The DoorBird Converter Features:

• Use of existing cabling
• Only a two-wire cable is required for both
• data transmission and power supply (PoE)
• Compact design, robust housing
• Easy and fast installation



The DoorBird Converter Specifications:

• Dimensions: 33x25x88 mm (HxWxD); 1,30×0,98×3,46 in (HxWxD)
• Power supply: PoE-Switch or PoE-Injector(IEEE 802.3 af), not included
• Operating conditions: -25 to 55°C / -13 to 131°F
• Speed: Up to 60 mbit/s at the maximum transmission range
• Latency: ~ 0.01 ms
• Connectors: 1x RJ45 jack (10/100 Base-T), 2x screw terminals
• PoE: PoE 802.3 af/at Mode-A and PoE +,up to 30 W
• Data line pair: 1/2 (+), 3/6 (-)
• Range: 80 meters / 262 feet with unshielded two-wire cable
• Scope of delivery:
  • 1xDoorBird 2-Wire Ethernet PoE Converter Sender
  • 1xDoorBird 2-Wire Ethernet PoE Converter Receiver
  • 1xDIN-Rail adapter
• Required accessories:
  • • 2xNetwork cable, IEEE 802.3 af PoE
  • Switch or PoE Injector, e.g. DoorBird
  • Gigabit PoE Injector, D-Link DGS-1008P or TPLink TL-PoE150S
  • Compatible with all DoorBird IP Video
  • Door Stations
• Approvals: CE, FCC, RoHS, IP50
• Weather-proof: No
• Weight: 140 g
• EAN: 4260423860360
