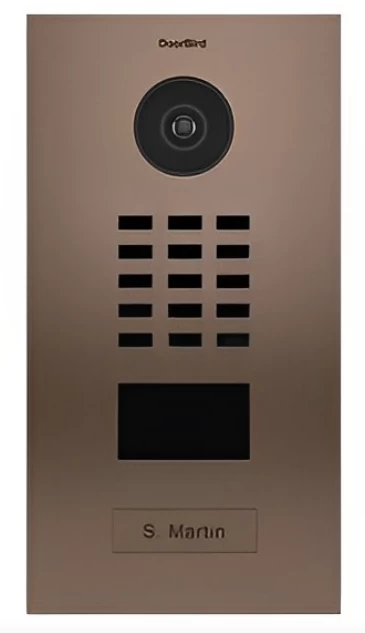

DoorBird IP Video Door Intercom, Bronze

The Doorbird D2101BV is a video intercom that allows you to see and talk to people who come to your door at any time and remotely thanks to the integrated IP camera, directly on a smartphone or tablet. Family members can use the built-in RFID as the key to the door.

D2101V door bird IP video intercom, stainless steel V2A, brushed, PVD coating with a bronze finish, 1 call pushbutton.

DoorBird D2101BV IP Video Door Intercom Features:

• Automatic door buzzer
• Free visitor history
• Individual action schedules
• Geofencing
• HDTV Video
• Light sensor
• Microphone
• Noise reduction and echo cancellation (AEC, ANR)
• RFID reader
• Motion sensor with 4D technology
• Call button
• Easy connection to the network
• Two freely configurable bi-stable switching relays

DoorBird D2101BV IP Video Door Intercom Specification:

General

• Front: Brushed stainless steel, 3mm. Bronze finish.
• Rear mounting housing: Stainless steel.
• Type of installation: flush or surface mount, mounting box sold separately.
  Call button: plastic. Metal engravable cover plate available separately.
• Nameplate: illuminated
• Power supply: 15V DC or Power over Ethernet (PoE 802.3af Mode-A)
• Weight: 1577gr
• Connection:
  • RJ45, for LAN/POE
  • Bi-stable locking relay #1, max. 1-24V DC/V AC, 1 amp, e.g. for the electric door opener
  • Bi-stable locking relay #2, max. 1-24V DC/V AC, 1 amp, e.g. for the electric door opener
  • External input (without potential) for the external door unlock button
  • Input 15V DC (+,-).
• Weather Protection: Yes, IP65
• Dimensions: 253 x 131 x 48.75mm (H x L x D)
• Conditions of service: -25 to +55°C
  • Relative humidity of the air: 10 to 85% (non-condensing)
• Content of the delivery:
  • 1x main electrical unit
  • 1x front
  • 1x RFID badge
  • 1x RFID card
  • 1x small pieces
  • 1x installation guide

 Requirements

• Required system:
  • Internet: high-speed fixed broadband internet connection broadband, DSL, cable or fiber, no socks or proxy server.
  • Network: Ethernet network with DHCP
• Recommended mounting height: The camera lens should be placed at least 125 cm.

 Video

• Camera: 720p HDTV, Dynamic (VGA – HDTV)
• Objective: large hemispherical angle High-end at 180° horizontally, 90° vertically, with correction, adaptable in infrared
• Night vision: Yes, brightness sensor, automatic IR-Cut filter, 12 IR LEDs (850 nm)

 Audio

• Audio components: speaker and microphone, noise and echo reduction (AEC, ANR)
• Audio streaming: bidirectional, full duplex.

 Network

• Ethernet RJ45 Jack, PoE 802.3af Mode-A

 Motion sensor

• Type: Active
• Detection angle: 110°
• Range: 1 – 10 m, depending on the environment, configurable in steps of 1
• Technology: 4D. Based on multiple sensors and integrated algorithms, radio frequency energy (RFE)
• Configuration: Via the app, e.g.
  • Scope (1.10 m / 3.3 – 32.9 ft)
  • Direction (approaching, moving away, both)
  • Individual events (e.g., push-button relay, push message, SIP [Audio/Video] call, HTTP notification(s)
  • Individual schedules

 RFID

• Type: Active Drive Passive Label System (ARPT)
• Standard: ISO/IEC 18000-2:2009 Part 2
• Frequency: 125 KHz
• Range 0 – 3 cm, depending on the environment
• Antenna: Internal
• Compatible transponder: available separately,
• Configuration: Via the app, e.g.
  • Tag (add/remove)
  • Individual events (e.g., push-button relay, push message, SIP [Audio/Video] call, HTTP notification(s)
  • Individual schedules

Built-in wireless module

• RFID: 125 KHz
• Sensor: 24 GHz, can be disabled

Special remarks: Assembly requires professional skills or a technician.
