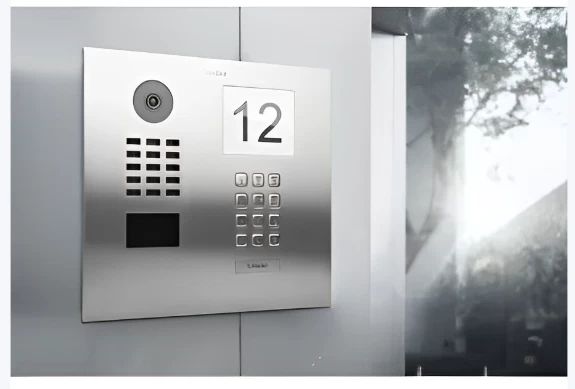

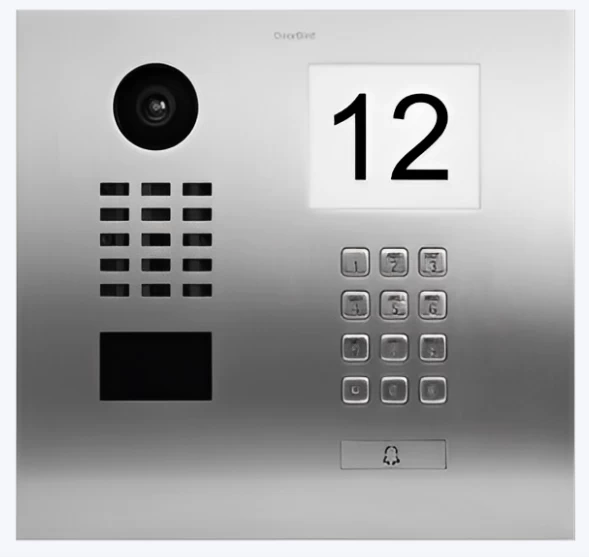

DoorBird IP Video Door Station, 1 Call Button, Keypad, Stainless, Info Panel

The Doorbird D2101KV is a video entryphone that allows users to see and speak to anyone who rings the doorbell, at any time and at any distance thanks to the built-in IP camera, directly to their smartphone or tablet. Family members can use the built-in RFID as a door key. The new model features one call button and a multifunctional keypad, making it well-suited for single-family homes, hotels, and commercial spaces that require a safe and efficient access control solution, according to the company.

Doorbird D2101IKH- IP Video Door Station Features:

• Automatic door buzzer
• Free visitor history
• Individual action schedules
• Geofencing
• Night vision
• HDTV Video
• Motion sensor with 4D technology
• Two freely configurable bi-stable switching relays
• RFID reader
• Motion sensor with 4D technology
• Noise reduction and echo cancellation (AEC, ANR)
• Call button
• Info module
• Keypad Module
• Easy connection to the network
• Microphone

Doorbird D2101IKH- IP Video Door Station Specifications:

General

• Front panel: 3 mm (0.12 in) Available in brushed stainless steel V2A / V4A and V4A with bronze and titanium finish, DB 703, RAL 7016
• Mounting housing (backbox): Stainless steel
• Mounting type: Flush-mounted, surface-mounting housing sold separately
• Power supply:15 V DC (max. 15 W)
• Call button: Illuminated
• Info Module: 3.5″, illuminated
• Keypad Module: 12 keys, illuminated, configurable via App, e.g.

• Individual PIN codes
• Individual events (e.g. switch a relay, HTTP(s) request)
• Individual schedules • Up to 100 PIN codes manageable
• 30 most recent entries viewable in history

• Weight: 3043 g
• Weather-proof: Yes, IP65
• Approvals IP65, CE, FCC, IC, RoHS, IK08, REACH, IEC/EN 62368, IEC/EN 62471
• Dimensions: 256 x 275,25 x 48,75 mm (H x W x D) 10,08 x 10,13 x 1,92 in (H x W x D)
• Operating conditions: -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)

Requirements

• Required system:
  • Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/Tablet
  • Internet: High-Speed Landline Broadband Internet connection, DSL, cable or fiber optic, no socks or proxy server
  • Network: Ethernet Network, with DHCP
• Recommended mounting height: The camera lens should be at a min. height of 145 cm (57 in). Before the installation please determine your optimal installation height.

Video

• Camera: HDTV 720p, dynamic (VGA – HDTV)
• Objective: High-end ultra wide-angle hemispheric lens 180° (D), 140° (H), 100° (V), straightened, IR-capable
• Night vision: Yes, light sensor, automatic IR-cut filter, 12 Infrared LEDs (850 nm)

Audio

• Audio components: Speaker and microphone, noise reduction, and echo cancellation (ANR, AEC)
• Audio streaming: Two-way, full duplex

Motion sensor

• Type: Active
• Detection angle: 54° (H), 70° (V)
• Range: 1 – 10 m (3.3 – 32.9 ft), depending on the environment, configurable in 1 m (3.3 ft) steps.
• Technology: 4D. Based on multiple integrated sensors and algorithms, e.g. Radio Frequency Energy (RFE)
• Configuration: Via the app, e.g.
  • Scope (1.10 m / 3.3 – 32.9 ft)
  • Direction (approaching, moving away, both)
  • Individual events (e.g., push-button relay, push message, SIP [Audio/Video] call, HTTP notification(s)
  • Individual schedules

RFID

• Type: Active Reader Passive Tag (ARPT) system
• Standard: ISO/IEC 18000-2:2009 Part 2, EM4100, EM4102
• Frequency: 125 KHz
• Range 0 – 3 cm, depending on the environment
• Antenna: Internal
• Compatible transponder: RFID key fobs
• Configuration: Via the app, e.g.
  • Via App, e.g.
  •  Tag (add, delete)
  •  Individual events (e.g. switch a relay, SIP call , HTTP(s) notification) •
  • Individual schedules
  •  RFID history available for 60 minutes in the app

Built-in wireless module

• RFID: 125 KHz
• Sensor: 24 GHz, can be disabled

Special remarks: Assembly requires professional skills or a technician.
