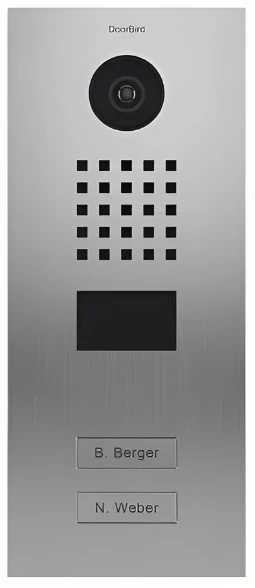

DoorBird MDU IP Video Door Intercom For 2 Tenants, 2 Buttons, Stainless Steel

The Doorbird D2102V video entryphone for 2 users is ideal for a small co-ownership property or shared flat or house. It enables 2 users to see and speak to anyone who rings the doorbell, at any time and any at distance thanks to the built-in IP camera, directly to their smartphone or tablet. Family members can use the built-in RFID as a door key.

Doorbird D2102V Video Door Intercom Features:

• Automatic door buzzer
• Free visitor history
• Individual action schedules
• Geofencing
• Night vision
• HDTV Video
• Light sensor
• Microphone
• Noise reduction and echo cancellation (AEC, ANR)
• RFID reader
• Motion sensor with 4D technology
• Call button
• Easy connection to the network
• Two freely configurable bi-stable switching relays

DoorBird D2102BV IP Video Door Intercom Specifications:

GENERAL

• Front panel: 3 mm (0.12 in) Available in brushed stainless steel V2A / V4A and V2A with bronze and titanium finish, DB 703, RAL 7016
• Mounting Type: Flush- or surface-mounted, mounting housing sold separately
• Power supply: 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
• Call button: Plastic

• Weight: 1302 g
• Weather-proof: Yes, IP65
• Approvals: IP65, CE, FCC, IC, RoHS, IK08, REACH, IEC/EN 62368, IEC/EN 62471
• Dimensions: 313 x 131 x 48,75 mm (H x W x D) 12.32 x 5.16 x 1.92 in (H x W x D)
• Operating conditions: -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non condensing)

Requirements

• Required system:
  • Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/Tablet
  • Internet: High-Speed Landline Broadband Internet connection, DSL, cable or fiber optic, no socks or proxy server
  • Network: Ethernet Network, with DHCP
• Recommended mounting height: Camera lens should be at a min. height of 125 cm (49 in)

 Video

• Camera: HDTV 720p, dynamic (VGA – HDTV)
• Lens: High-end ultra wide-angle hemispheric lens 180° (D), 140° (H), 100° (V), straightened, IR-capable
• Night vision: Yes, light sensor, automatic IR-cut filter, 12 IR-LEDs (850 nm)

 Audio

• Audio components: Speaker and microphone, noise reduction and echo cancellation (ANR, AEC)
• Audio streaming: Two-way, full duplex

 Motion sensor

• Type: Active
• Detection angle: 54° (H), 70° (V)
• Range: 1 – 10 m (3.3 – 32.9 ft), depends on environment, configurable in 1 m (3.3 ft) steps
• Technology: 4D. Based on multiple integrated sensors and algorithms, e.g. Radio Frequency Energy (RFE)
• Configuration: Via the app, e.g.
  • Range (1 – 10 m / 3.3 – 32.9 ft)
  • Movement direction (coming, leaving, both)
  • Individual events (e.g. switch a relay, push notification, SIP call , HTTP(s) notification)
  • Individual schedules

 RFID

• Type: Active Reader Passive Tag (ARPT) system
• Standard: ISO/IEC 18000-2:2009 Part 2, EM4100, EM4102
• Frequency: 125 KHz
• Range 0 – 3 cm, depending on the environment
• Antenna: Internal
• Compatible transponder: RFID key fobs
• Configuration: Via the app, e.g.
  • Tag (add, delete)
  • Individual events (e.g. switch a relay, SIP call , HTTP(s) notification)
  • Individual schedules
  • RFID history available for 60 minutes in the app

Special remarks: Assembly requires professional skills or a technician.
