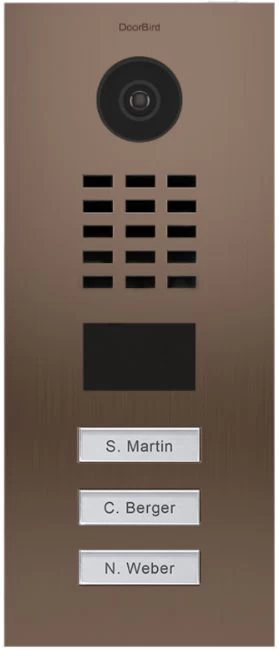

DoorBird MDU IP Video Door Intercom For 3 Tenants, 3 Call Buttons, Bronze-Finish

The DoorBird D2103BV is a Flush-mounted IP Video door intercom with brushed Stainless steel bronze finish housing and three illuminated nameplate call buttons. The DoorBird D2103BV delivers sharp HDTV 720p live video at a 110° viewing angle and detailed night vision. The DoorBird connects via wired Ethernet via an included dongle. The free DoorBird app works with Android and iOS.

DoorBird D2103BV IP Video Door Intercom Features:

• Open API
• Video and audio call
• Smart Transmission Mode (STM)
• Smart Home & NVR compatible
• Automatic door buzzer
• Free visitor history
• Individual action schedules, e.g.:
• Geofencing
• Night vision
• HDTV Video
• Light sensor
• Microphone
• Noise reduction and echo cancellation (AEC, ANR)
• RFID reader
• Motion sensor with 4D technology
• Call button
• Easy connection to the network
• Two freely configurable bi-stable switching relays
• Elegant and discreet design
• Burglary prevention

DoorBird D2103BV IP Video Door Intercom Specifications:

GENERAL

• Front panel: Brushed stainless steel, Bronze-Finish, 3 mm (0,12 in)
• Mounting Type: Flush-mounted, surface-mounting housing sold separately
• Power supply: 15 V DC or Power over Ethernet (PoE 802.3af Mode-A)
• Call button: Plastic

• Weight: 1818 g
• Weather-proof: Yes, IP65
• Approvals: CE, IC, FCC, RoHS, IP65, IK08
• Dimensions: 313 x 131 x 48.75 mm (H x W x D) 12.32 x 5.16 x 1.92 in (H x W x D)
• Operating conditions: -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)

Requirements

• Required system:
  • Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/Tablet
  • Internet: High-Speed Landline Broadband Internet connection, DSL, cable or fiber optic, no socks or proxy server
  • Network: Ethernet Network, with DHCP
• Recommended mounting height: The camera lens should be at a min. height of 125 cm (49 in)

 Video

• Camera: HDTV 720p, dynamic (VGA – HDTV)
• Lens: High-end ultra wide-angle hemispheric lens 180° (D), 140° (H), 100° (V), straightened, IR-capable
• Night vision: Yes, light sensor, automatic IR-cut filter, 12 IR-LEDs (850 nm)

 Audio

• Audio components: Speaker and microphone, noise reduction, and echo cancellation (ANR, AEC)
• Audio streaming: Two-way, full duplex

 Motion sensor

• Type: Active
• Detection angle: 54° (H), 70° (V)
• Range: 1 – 10 m (3.3 – 32.9 ft), depending on the environment, configurable in 1 m (3.3 ft) steps
• Technology: 4D. Based on multiple integrated sensors and algorithms, e.g. Radio Frequency Energy (RFE)
• Configuration: Via the app, e.g.
  • Range (1 – 10 m / 3.3 – 32.9 ft)
  • Movement direction (coming, leaving, both)
  • Individual events (e.g. switch a relay, push notification, SIP call , HTTP(s) notification)
  • Individual schedules

 RFID

• Type: Active Reader Passive Tag (ARPT) system
• Standard: ISO/IEC 18000-2:2009 Part 2, EM4100, EM4102
• Frequency: 125 KHz
• Range 0 – 3 cm, depending on the environment
• Antenna: Internal
• Compatible transponder: RFID key fobs
• Configuration: Via the app, e.g.
  • Tag (add, delete)
  • Individual events (e.g. switch a relay, push notification, SIP call , HTTP(s) notification)
  • Individual schedules

Special remarks: Assembly requires professional skills or a technician.
