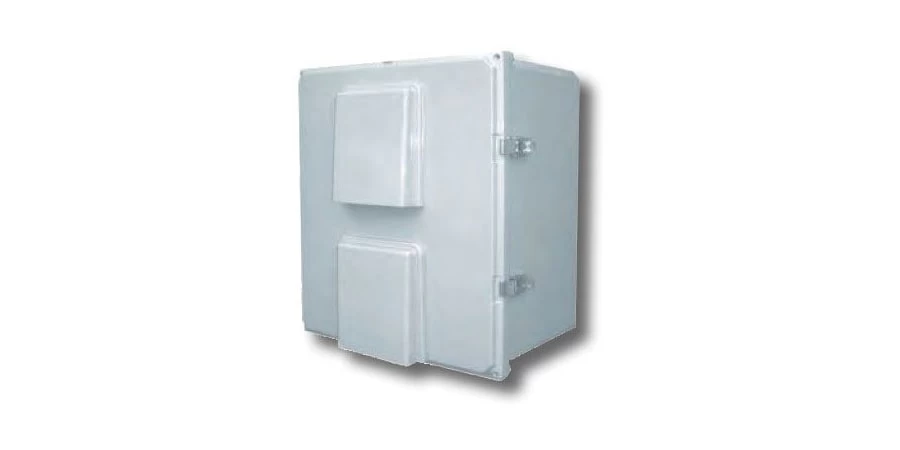

Mier NEMA 3R Enclosure, 16x14x7, 115 Volt Fan-Ventilated With Thermostat

The “FC Series” fan-cooled & ventilated NEMA 3R outdoor/indoor enclosures are an inexpensive choice for installation where you need air-flow exchange to ventilate your components mounted within enclosures. However, please keep in mind fan-cooled & ventilated enclosures simply exchange internal air for the external air. Therefore, Fan-Cooled models are not recommended for extreme high-temperature nor extreme low temperature environments. Because these units pull external air into the enclosure through a filtering system, they are listed as NEMA 3R and do not meet the NEMA 4 standards of Mier’s air-conditioned and heated models (ACE Series or ACHT Series) which are the safest choice when your components need NEMA 4 type protection from the elements such as moisture, heat, cold, wind, rain, snow, ice, etc., or from wash down conditions.

Product Features:

• Dimensions: 16” W x 14” H x 7” D
• Color: Gray
• Outdoor, NEMA 3R Design
• Non-metallic polycarbonate enclosure allows you to place transmitters/receivers inside
• 81 cubic foot-per-minute thermostatically controlled fan
• Air intake and fan exhaust protective shrouds with gasket and hardware
• Air filter
• All holes pre-cut to install included shrouds, fans, filters
• Gaskets
• Removable hinged doors come with stainless steel latches which are both pad-lockable and screw down
• Optional Back Panels or DIN Rails fit onto standoffs already existing in the back of the enclosure
• Optional Back Panel Adjustment Kit allows you to “stack” panels within the enclosure
• Optional keyed lock available
