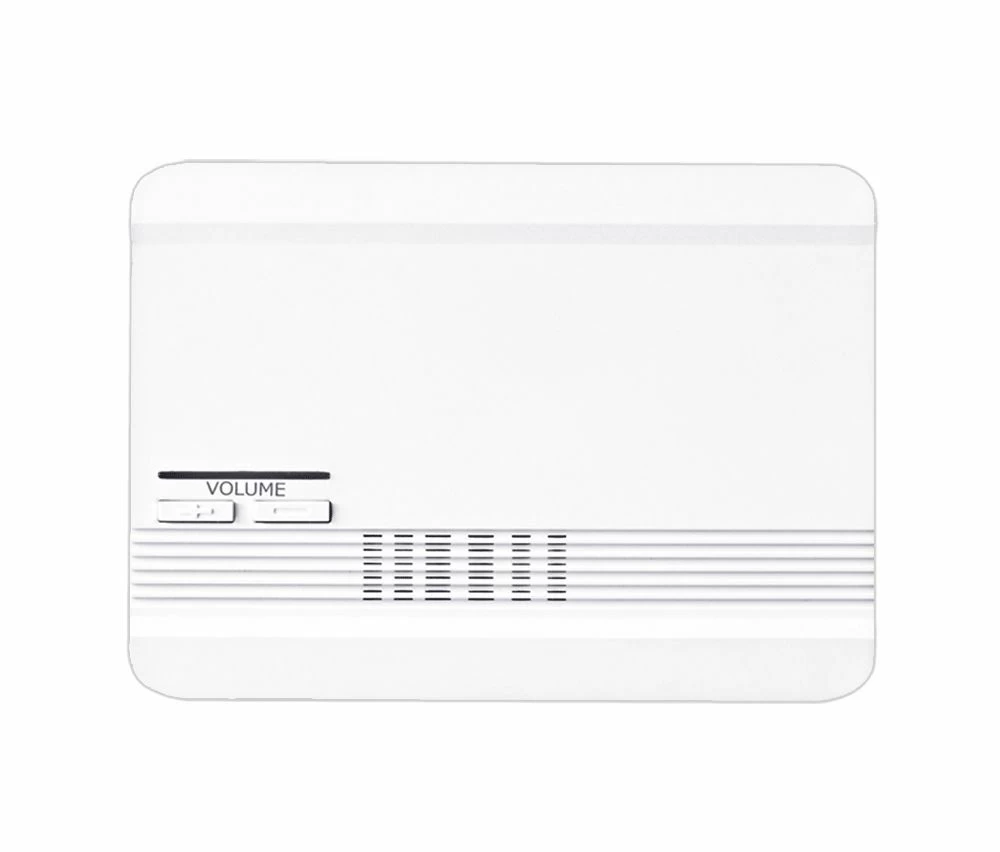

Optex IVision+ Connect IVPC-DI Door Interface

Optex IVPC-DI iVision+ Connect Door Interface

Expand your Optex iVision+ Connect wireless intercom system by adding a door interface and chime module. Users can select from 5 different chime tones with 3 volume levels, to be played when the doorbell button is pressed.

The door interface also has a built in relay that can be triggered by the viewing stations or the app, to trigger a door strike or similar device. It can be used as a chime, dry relay output or both.

* Note (4) IVPC-DI can pair to one IVPC-DS however only (1) IVPC-DI can trigger a relay, the other three are chimes only.

Optex IVPC-DI iVision+ Connect Door Interface Features

• Provides a chime for the iVision+ Connect system
• External output to electric strike or mag lock
• Select from 5 different chimes
• 3 volume levels
• On board relay rated 1A, 50VAC / 24VDC
• Wall mountable
• Indoor use only

Optex IVPC-DI iVision+ Connect Door Interface Specifications

• Powered by 10-24V AC/DC
• Frequency: 916 MHz
• Dimensions 4.33 x 3.86 x 1.1 inches
• Power: 10 to 24 AC/DC 500mA max
• Chime Volume: Approx. 80 dB max, 3 Levels + mute
• Relay output duration: 1/5/10/30/60 seconds
• Relay output rating: 1C relay. 1A max. 50V AC/24V DC
• Operating Temperature: 0 C to 40 C (-32 F to 104 F) < 90% (no condensation)

Optex IVPC-DI iVision+ Connect Door Interface Includes

• 1 x IVPC-DI Door Interface

Optex IVPC-DI iVision+ Connect Door Interface Support

• Optex Overview Booklet
• IVPC-DI User Guide
