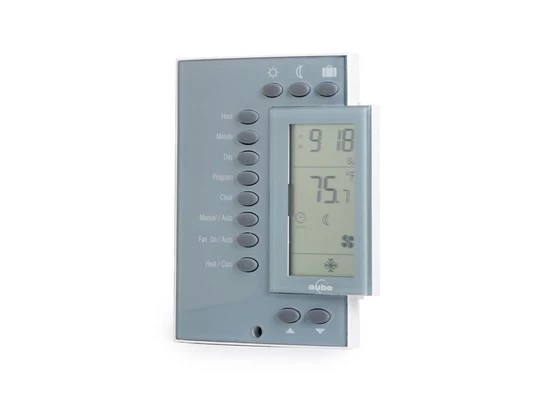

Sensaphone Dual Set Back Thermostat (TH141HC-28-B/U)

Aube TH141 Dual Heat Cool Thermostat

Applications: Oil, Gas, Propane with Air Conditioning.
Load: 1.5 A @ 24 V
Wires: R, C, W, Y, G

TH141 Thermostat Features

• Selectable temperature control gives flexibility to control a range of heating/cooling systems and applications
• Automatic changeover between heating and cooling
• Auto/manual fan control
• Comfort, Economy and Vacation presets enables temperature changes at the touch of a button
• Armchair programming: convenient programming by removing faceplate from base
• Precise LCD shows room temperature in increments of 0.1ºC or 0.1ºF
• Low battery indicator gives 60 days warning to replace batteries
• Remote input enables change of temperature modes from alarm automation system (12 VDC transformer required)

TH141 Thermostat Specifications

• Power supply: 2 AA size alkaline batteries
• Connection: 2, 3, 4 or 5 wires
• Maximum load: 1.5 A/30 VAC per output
• Auxiliary input: 12 VDC ± 10%, 2.3 mA
• Number of programs: 4 programs/day, 28 programs total
• Heating setting range: 5 °C to 30 °C (40 °F to 85 °F)
• Air-conditioning setting range: 16 °C to 40 °C (60 °F to 105 °F)
• Anticipation: electronic anticipation independent of the load
• Regulation: proportional or conventional
• Regulation periods: 5, 10, 15 or 20 minutes

TH141 Thermostat Specifications

• 1 x Aube TH141 Dual Thermostat

TH141 Thermostat Support

• Dual Thermostat Manual
• Diagram for Wiring to Dual Setback Thermostat
