Sensaphone FGD-0105 10K Immersion Temperature Sensor

Sensaphone FGD0105 10K Immersion Temperature Sensor

Waterproof for measuring the temperature of fluids inside a pipe. 304 stainless steel probe. Brass WEL-B thermowell (screws into customer-supplied 0.5″ NPT saddle or Thredolet® fitting in-pipe). Fits into thermowell via brass 0.125″ NPT fitting. Accurate to +/-0.36ºF (0.2ºC) with a sensing range of 10ºF to 230ºF. Includes 8′ of 24AWG wire. Dimensions: Thermowell 5.125″, Sensor in well 6.5″

FGD0105 10K Immersion Temperature Sensor Specifications

• Accurate to +/-0.36F (0.2C) with a sensing range of 10F to 230F.

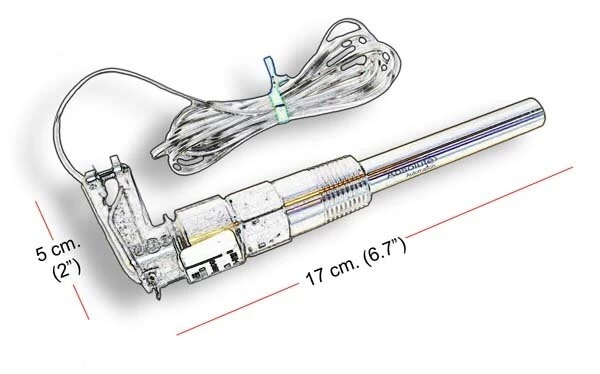

• Dimensions: Thermowell 5.125″, Sensor in well 6.5″

10K Immersion Temperature Sensor Includes

• 10K Immersion Temperature Sensor
• 8′ of 24AWG wire
