Sensaphone FGD-WSG30-PWR WSG Wireless Power Failure Sensor

Sensaphone WSG30 Power Failure Sensor

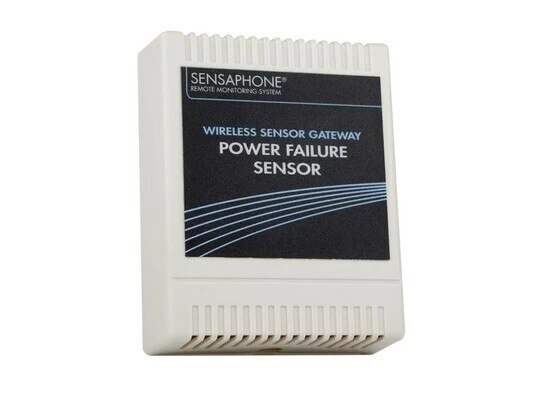

The WSG Wireless Power Failure sensor is designed to work exclusively with the Sensaphone WSG30. This sensor includes a built-in radio transmitter, two AA alkaline batteries and a wall plug-in power supply. The sensor will detect a loss of power at the outlet where the power supply is attached. The two AA alkaline batteries will power the sensor and allow it to transmit alarm information in the event that 120VAC power fails.

Sensaphone WSG30 Power Failure Sensor Specifications

• Operating Temperature Range: 32° to 122°F (0° to 50°C)
• Operating Humidity Range: 095%
• Transmit Power Output: 100mW (20dBm)
• Range: Up to 300FT (90m)
• Power Requirements: (2) AA Batteries / 5VDC Power Supply (Included)
• Wireless Technology: ISM 2.4GHz, 100 mW (20dBm)
• Housing: White plastic
• Size: 3.1 x 3.8 x 1.1 (7.9cm x 9.8cm x 2.85cm)

Sensaphone WSG30 Power Failure Sensor Includes

• 1 x Sensaphone WSG Wireless Power Outage Sensor
• 2 x AA Alkaline Batteries
• 1 x Mounting Kit
• 1 x 120VAC 60Hz/5VDC Power Supply

Sensaphone WSG30 Power Failure Sensor Support and Downloads

• WSG Power Outage Sensor Manual
• WSG-30 Cut Sheet
