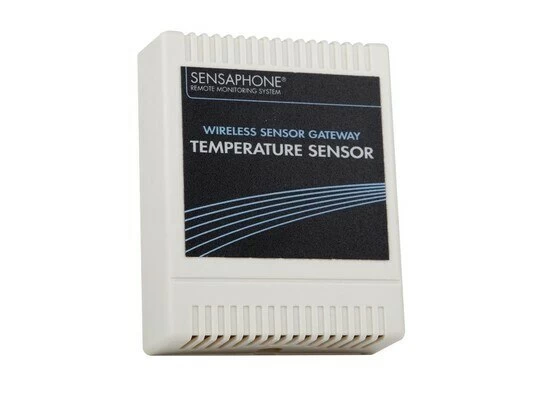

Sensaphone FGD-WSG30-TMP WSG Wireless Temperature Sensor

Sensaphone FGDWSG30TMP WSG30 Wireless Temperature Sensor

The WSG Wireless Temperature sensor is designed to work exclusively with the Sensaphone WSG30. This sensor includes a built-in radio transmitter and temperature element for monitoring temperature wherever the device is installed. You can remove the internal temperature element and attach a remote temperature probe so that measurements can be made in a refrigerator, freezer, or other harsh environments. The sensor comes with two AA alkaline batteries which will power the sensor for up to two years. An optional plug-in power supply is also available in which case the batteries become a backup if main AC power fails.

Sensaphone WSG30 Wireless Temperature Sensor Specifications

• Operating Temperature Range: 32° to 122°F (0° to 50°C) – with External Probe -109° to 115°F (-85° to 57°C)
• Operating Humidity Range: 095%
• Sensor Type: Wireless, WSG
• Accuracy: 1.0°F (± 0.56°C)
• Transmit Power Output: 100mW (20dBm)
• Range: Up to 300FT (90m)
• Power Requirements: (2) AA Batteries / 5VDC Power Supply (Router Mode)
• Wireless Technology: ISM 2.4GHz, 100 mW (20dBm)
• Housing: White plastic
• Size: 3.1 x 3.8 x 1.1 (7.9cm x 9.8cm x 2.85cm)

Sensaphone WSG30 Wireless Temperature Sensor Includes

• 1 x Sensaphone WSG Wireless Temperature Sensor
• 2 x AA Alkaline Batteries
• 1 x Mounting Kit

Sensaphone WSG30 Wireless Temperature Sensor Support and Downloads

• WSG Temperature Sensor Manual
• WSG-30 Cut Sheet
